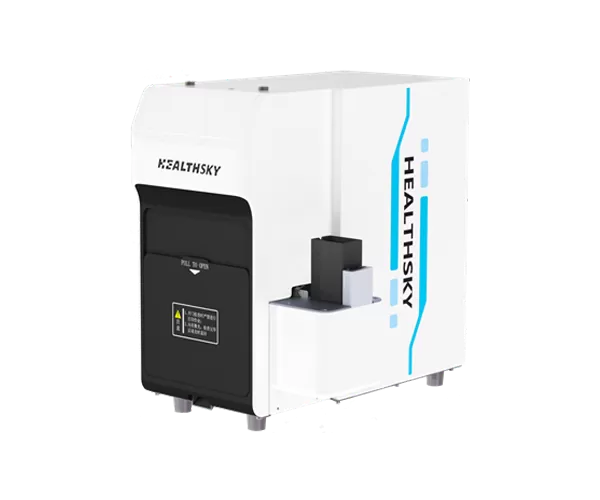

EMarker-21A-C100 Ultraviolet Laser Cassette Printer is a printing device developed by HealthSky that can leave permanent marks on the writing surface of the tissue cassettes.
EMarker-21A-C100 utilizes ultraviolet laser printing technology to create crisp, permanent, and high-resolution markings at high speed.
| Model | EMarker-21A-C100 | |
| Compatible Cassette | 45° angle marking surface, POM material, with or without lid. |  |
| Cassette dimension: | ||
| Length 41~42.2 mm, width ≤28.6 mm, height 5.9~6 mm. | ||
| Printing Technology | Non-Contact Ultraviolet Laser | |
| Print Head | 1 | |
| Print Color | Black to Gray | |
| Print Content | Alphanumeric, 1D/2D barcodes, Graphics, Symbols | |
| Single Print Speed* | ≤3 seconds | |
| Batch Print Speed* | ≤300 seconds /100 pcs | |
| Resolution | 2500 dpi | |
| Cassette Capacity | 1 hopper | |
| Loading Access | 1 | |
| Single Feeding Capacity | 1 pcs/access | |
| Operation & Display | PC | |
| Operating System | Windows11, Windows10, Windows 7, x64/x86; Windows XP | |
| Data Interface | USB | |
| System Interface | LIS, LIMS, HIS, PIS, PACS | |
| Supported Encoding Data | Texts, Numeric, Alphabets, Basic symbol | |
| Auxiliary Functions | Repetitive task reminder, Running fault alarm | |
| Supply Voltage | 100-240 VAC, 50/60 Hz | |
| Dimension (L × W × H) | 280×410×360 (mm) | |
| Weight | 18.5 kgs | |
