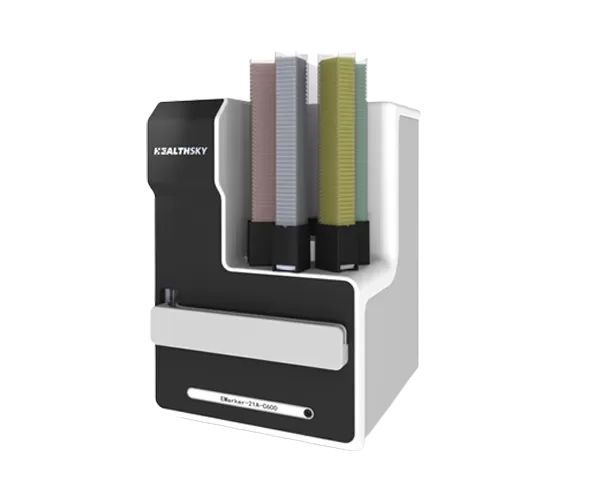

EMarker-21A-C600 Multi Hopper Ultraviolet Laser Cassette Printer

EMarker-21A-C600 Multi Hopper Ultraviolet Laser Cassette Printer is a printing device developed by HealthSky that can leave permanent marks on the writing surface of the tissue cassettes.

EMarker-21A-C600 utilizes ultraviolet laser printing technology to create crisp, permanent, and high-resolution markings at high speed.

It is a six-hopper cassette printer with a large capacity and supports hopper selection printing to meet the cross-selection of different tissue cassette types.

Specification of EMarker-21A-C600 Multi Hopper Ultraviolet Laser Cassette Printer


ModelEMarker-21A-C600
Compatible Cassette45° angle marking surface, POM material, with or without lid. Cassette dimension: Length 41~42.2 mm, width ≤28.6 mm, height 5.9~6 mm.Specification of EMarker-21A-C600 Multi Hopper Ultraviolet Laser Cassette Printer
Printing TechnologyNon-Contact Ultraviolet Laser
Print Head1
Print ColorBlack to Gray
Print ContentAlphanumeric, 1D/2D barcodes, Graphics, Symbols
Single Print Speed*≤3 seconds
Batch Print Speed*≤300 seconds /100 pcs
Resolution2500 dpi
Cassette Capacity6 hoppers
Loading Access1
Single Feeding Capacity1 pcs/access
Operation & DisplayPC
Operating SystemWindows11, Windows10, Windows 7, x64/x86; Windows XP
Data InterfaceUSB
System InterfaceLIS, LIMS, HIS, PIS, PACS
Supported Encoding DataTexts, Numeric, Alphabets, Basic symbol
Auxiliary FunctionsRepetitive task reminder, Running fault alarm
Supply Voltage100-240 VAC, 50/60 Hz
Dimension (L × W × H)320×420×510 (mm)
Weight24 kgs
